SNP100L9 - 100 CFM | 0.8 Sone | Edge Lit LED Light | No Attic Access Retrofit Install

Model: SNP100L9

AirFlow: 100 CFM (Cubic Feet per Minute)
Loudness: 0.8 sones
Bathroom size: Up to 100 sqft

Features:

• CEILING OPENING SIZE - Please note the ceiling opening requirement is 9 x 9 inch, resizing your ceiling opening will be needed if existing fan size is different.
• SUPER QUIET - Powerful 100 CFM and quiet operation at 0.8 Sones. Suitable for bathroom size up to 100 square feet.
• LED LIGHT - Modern Edge Lit LED light panel. Color temperature 4000K. 12 Watt. 1040 Lumen.

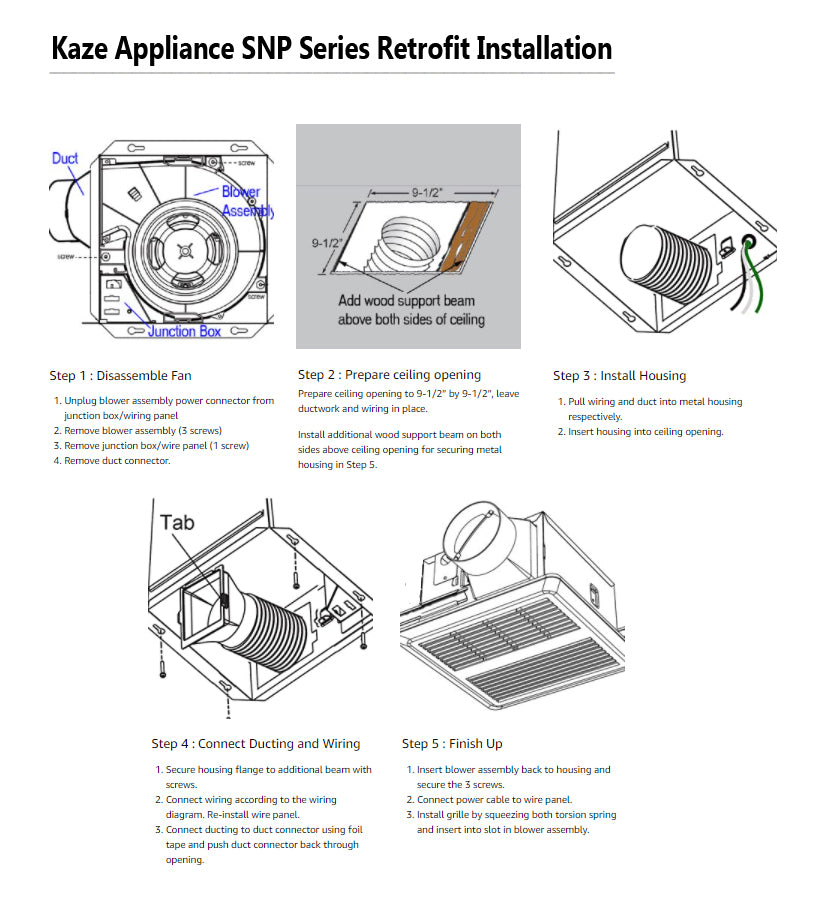

• INSTALLATION - No Attic Access Required. See photos and manual for installation instructions.
• DUCTING - Detachable 4 inch polymeric duct with back draft prevention damper.
• RELIABILITY - Proudly stand behind our products with 3 year warranty.

KAZE Appliance is proud to present SNP100L9, redesigned one piece blower assembly with removable 4 inch polymeric duct further improves stability and reliability. Built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The fan housing is made of rugged 26 GA galvanized steel and painted to prevent from rusting. Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.

Peace of mind quality, performance and reliability.

Housing dimension: 9 x 9 x 5 3/4 inch.

Grill dimension: 11 13/16 x 11 7/16 inches polymeric resin

Voltage/ frequency: 120Volt/60Hz.
