SNP100H - 100 CFM | 0.8 Sone | Humidity Sensing | No Attic Access Retrofit Install

SNP100H - 100 CFM | 0.8 Sone | Humidity Sensing | No Attic Access Retrofit Install

Regular price $154.50
Regular price Sale price $154.50
Sale Sold out
Shipping calculated at checkout.

Model: SNP100H

AirFlow: 100 CFM (Cubic Feet per Minute)
Loudness: 0.8 sones
Bathroom size: Up to 100 sqft
Instruction Manual


  • CEILING OPENING SIZE - Please note the ceiling opening requirement is 9 x 9 inch, resizing your ceiling opening will be needed if existing fan size is different.
  • SUPER QUIET - Powerful 100 CFM and quiet operation at 0.8 Sones. Suitable for bathroom size up to 100 square feet.

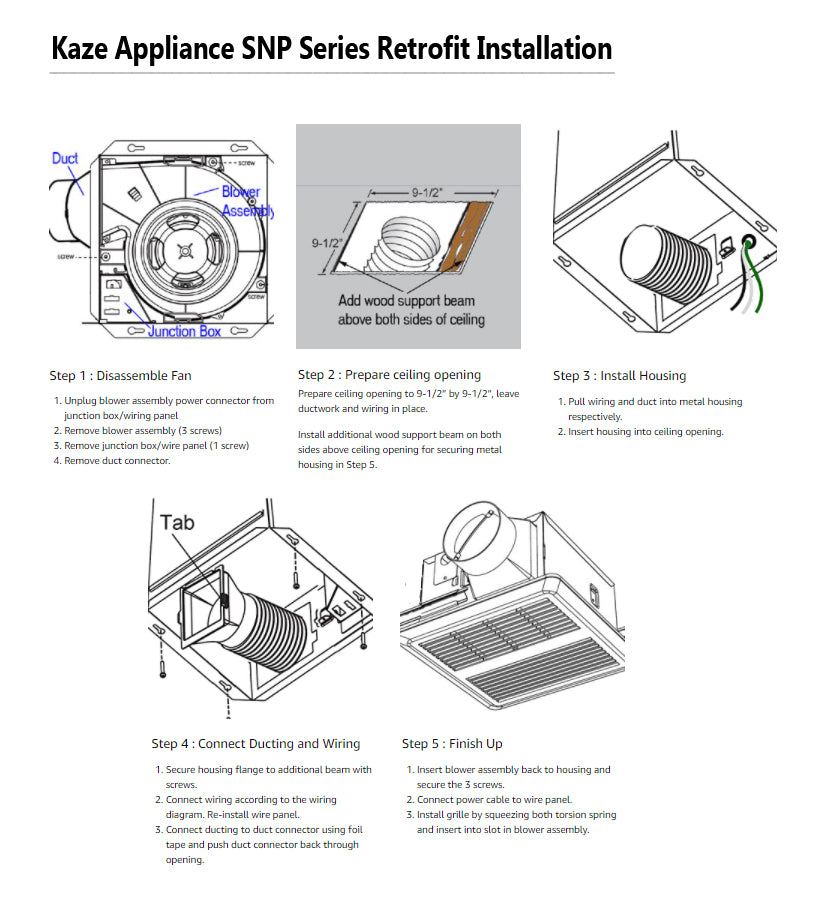

  • INSTALLATION - No Attic Access Required. See photos and video for installation instructions.
  • HUMIDITY SENSING - Automatically switch on/off the fan unit to maintain desirable humidity level and hands free operation.
  • DUCTING - Detachable 4 inch polymeric duct with back draft prevention damper.
  • RELIABILITY - Proudly stand behind our products with 3 year warranty.

KAZE Appliance is proud to announce the new model SNP100H, redesigned one piece blower assembly with detachable 4 inch duct adapter further improves stability and reliability. Built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The fan housing is made of rugged 26 GA galvanized steel and painted to prevent from rusting. Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.

Humidity Sensing
Humidity sensing fan uses a sophisticated humidity sensor that responds to:
(1) moderate to rapid increase in humidity or (2) humidity above a user-adjustable set-point (30% to 80% relative humidity)
Delay Timer
The SNP100H is also equipped with an adjustable delay timer (5-60 minutes) that provides additional run time for the fan to complete the remaining necessary ventilation after the sensor has stopped sensing a rise in humidity and the humidity level is below the user setting.

Peace of mind quality, performance and reliability.

Housing dimension: 9 x 9 x 5 3/4 inch.

Grill dimension: 11 13/16 x 11 7/16 inches polymeric resin

Voltage / Frequency: 120Volt/60Hz (0.2A Motor Current)

Wattage: 26W
