SEPD200L2 - 200 CFM, 2.0 Sone, LED Light, DC Motor

Model: SEPD200L2

AirFlow: 200 CFM (Cubic Feet per Minute)
Loudness: 2.0 sones
Bathroom size: Up to 200 sqft

Features:

• Sound level of less than 2.0-Sones at 200-cfm
• 11 watt LED light. Color temperature: 2700K
• LED light and fan can be combined or individually wired to wall switches

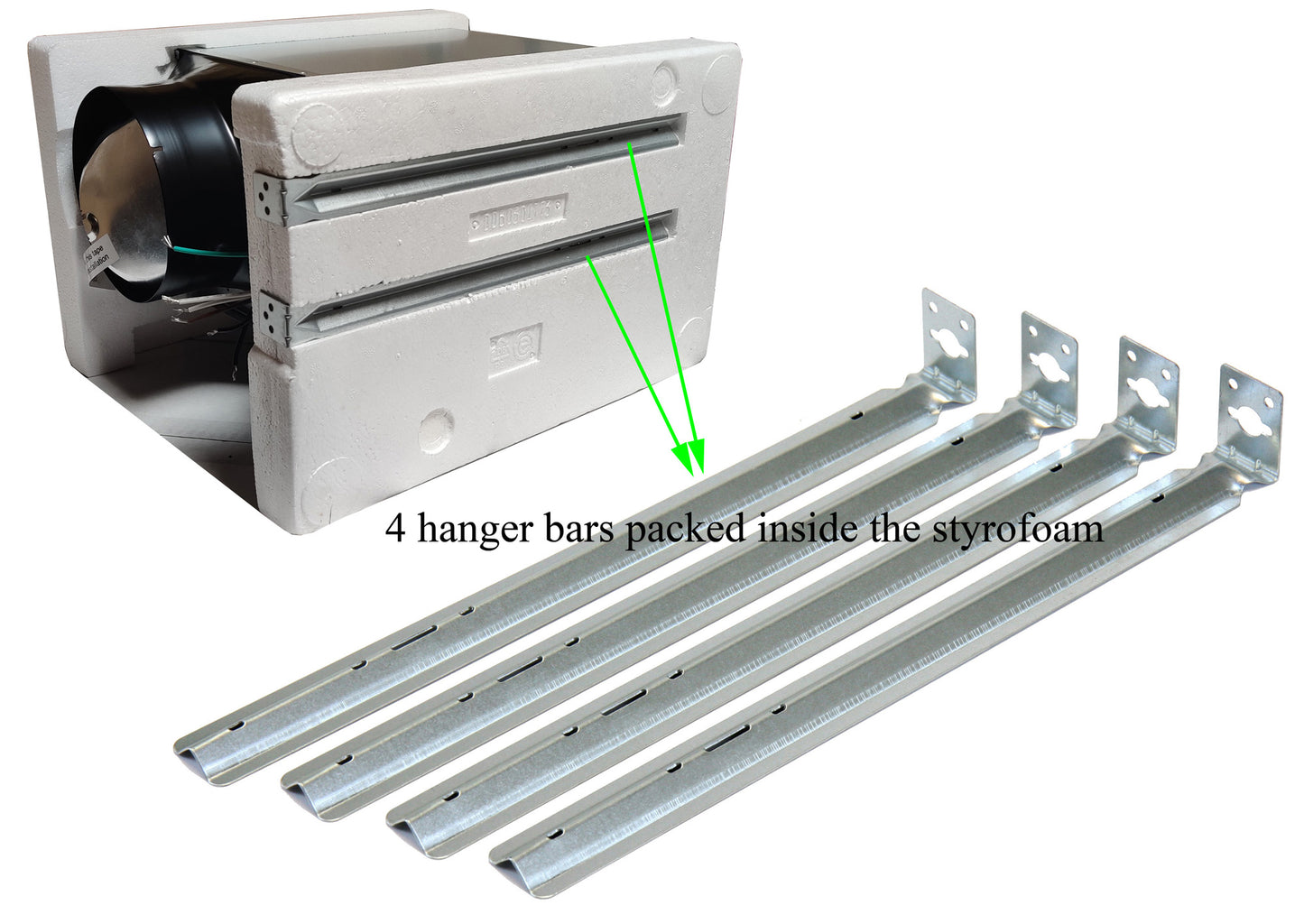

• Includes double hanger mounting bars, built in 6 inch duct adapter

• Three year warranty


KAZE Appliance is proud to announce the new model SEPD200L2, redesigned one piece blower assembly with brushless DC motor further improves stability and reliability. SEPD200L2 not only ventilates the air in your room, but also provides overhead LED lighting as well. 11-watt LED light (2700K color temperature) with 30,000 hours of rated life will help you find your way through the room in the dark.
The fan unit is built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The redesigned resin housing allows extra operation stability and prevent rusting. . Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.
Peace of mind quality, performance and reliability.

Housing dimension: 11 3/8 by 10 1/2 by 7 5/8 inch.
Grill dimension: 13 by 14 inches polymeric resin
Voltage/ frequency: 120Volt/60Hz.

SEPD200L2 Instruction Manual
