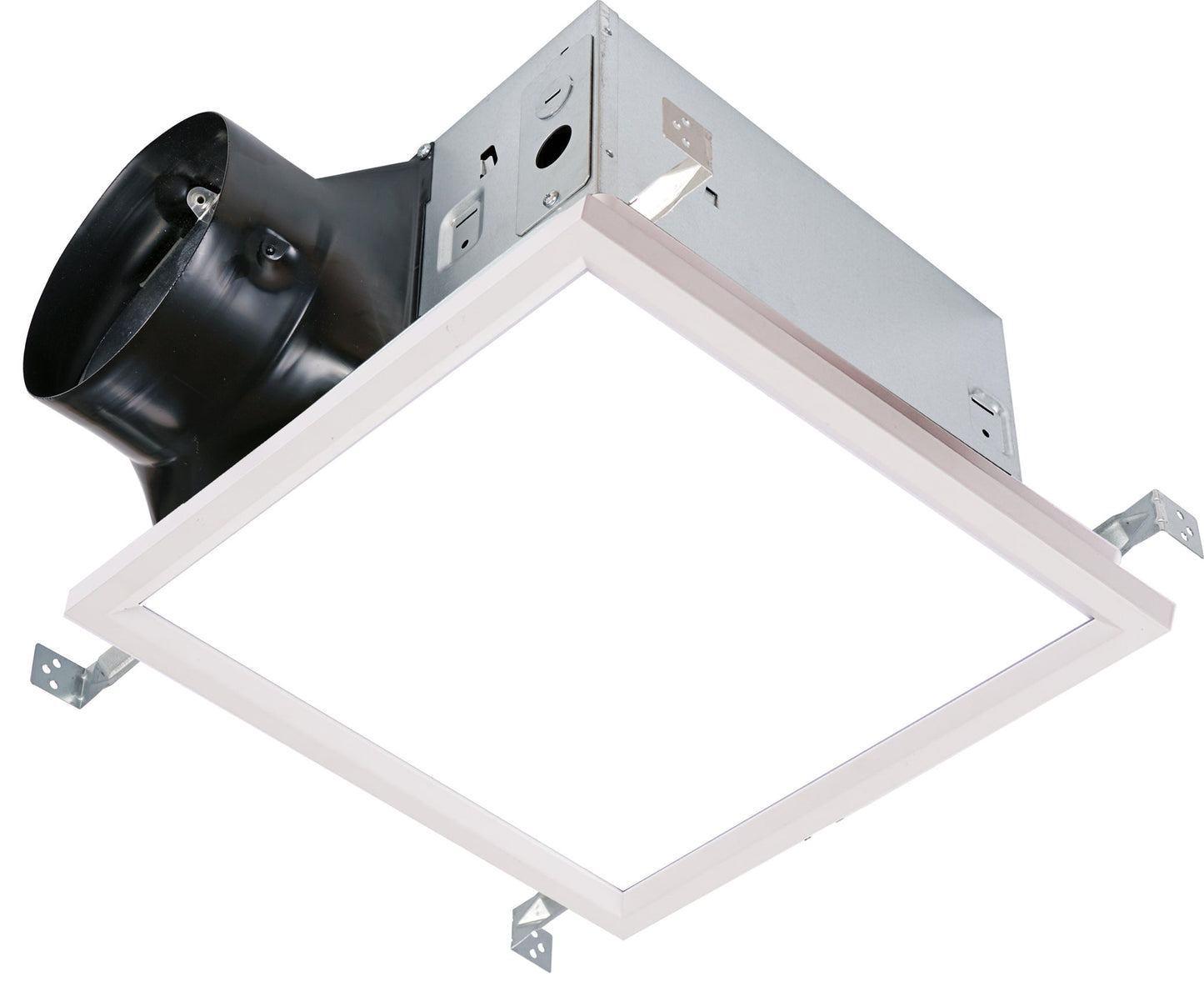

SEP150L11 | 150 CFM, 0.5 Sone | Dimmable 4000K Edge Lit LED Light

Model: SEP150L11

AirFlow: 150 CFM (Cubic Feet per Minute)
Loudness: 0.5 sones
Bathroom size: Up to 150 sqft

Features:

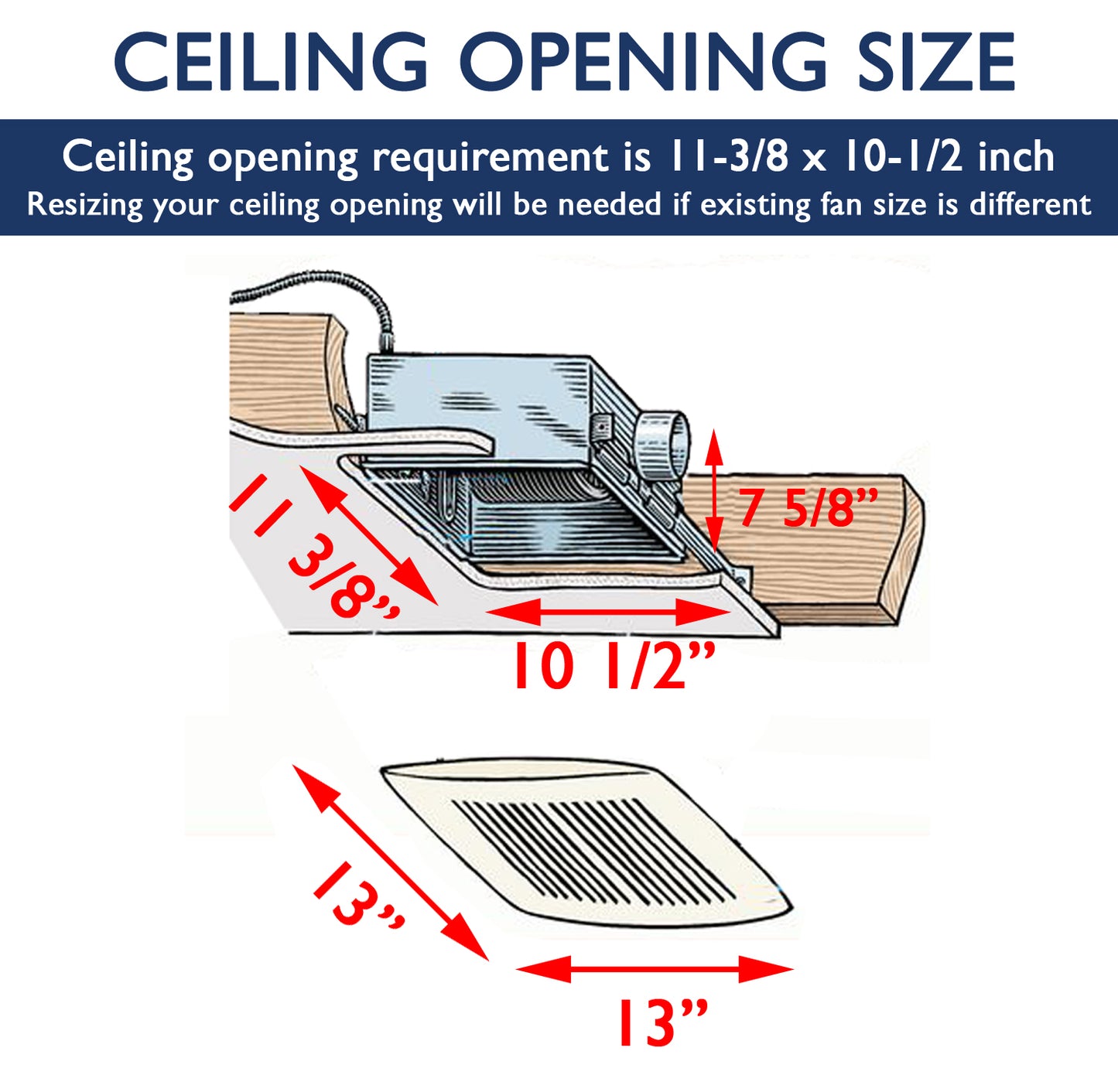

• CEILING OPENING SIZE - Please note the ceiling opening requirement is 11 3/8 x 10 1/2 inch, resizing your ceiling opening will be needed if existing fan size is different.
• SUPER QUIET - Barely audible sound level of less than 0.5-Sones at 150-CFM. Suitable for bathroom size up to 150 square feet.
• LED LIGHT - Modern dimmable Edge Lit LED light panel. Color temperature 4000K. 15 Watt. 1365 Lumen. CRI >80.

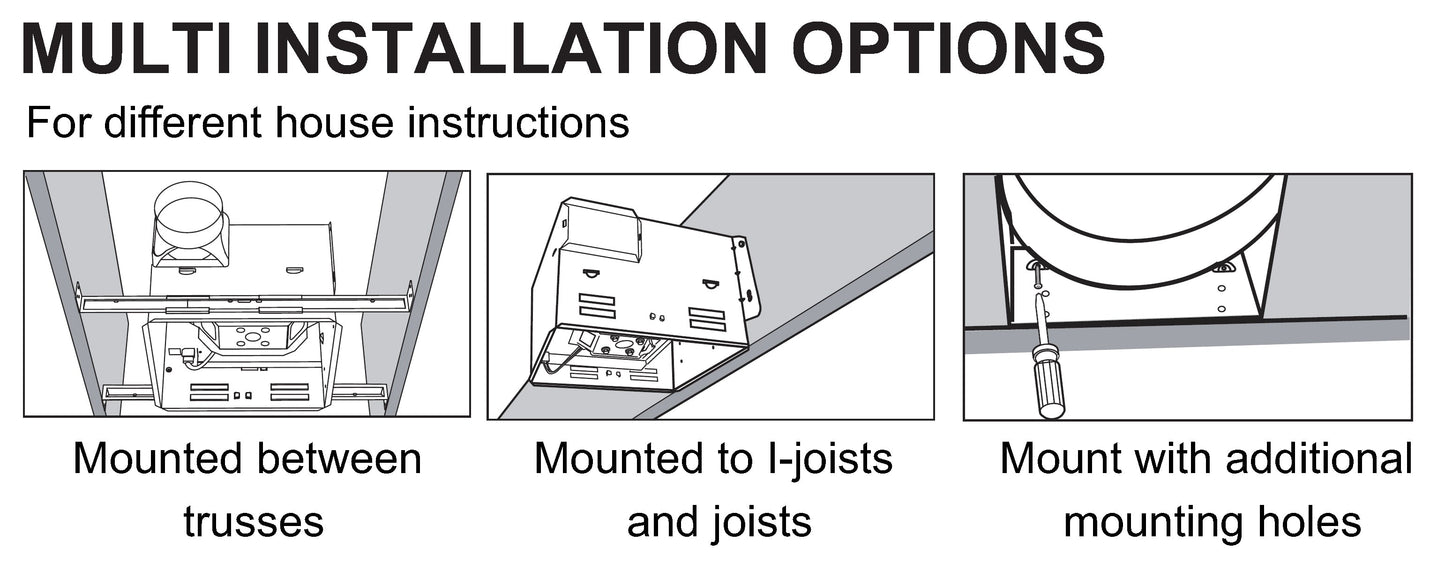

• INSTALLATION - Attic access required. Sliding hanger bars allow fan housing to be positioned accurately anywhere between the framing. The bars span up to 24 inch, can be used on all types of framing.

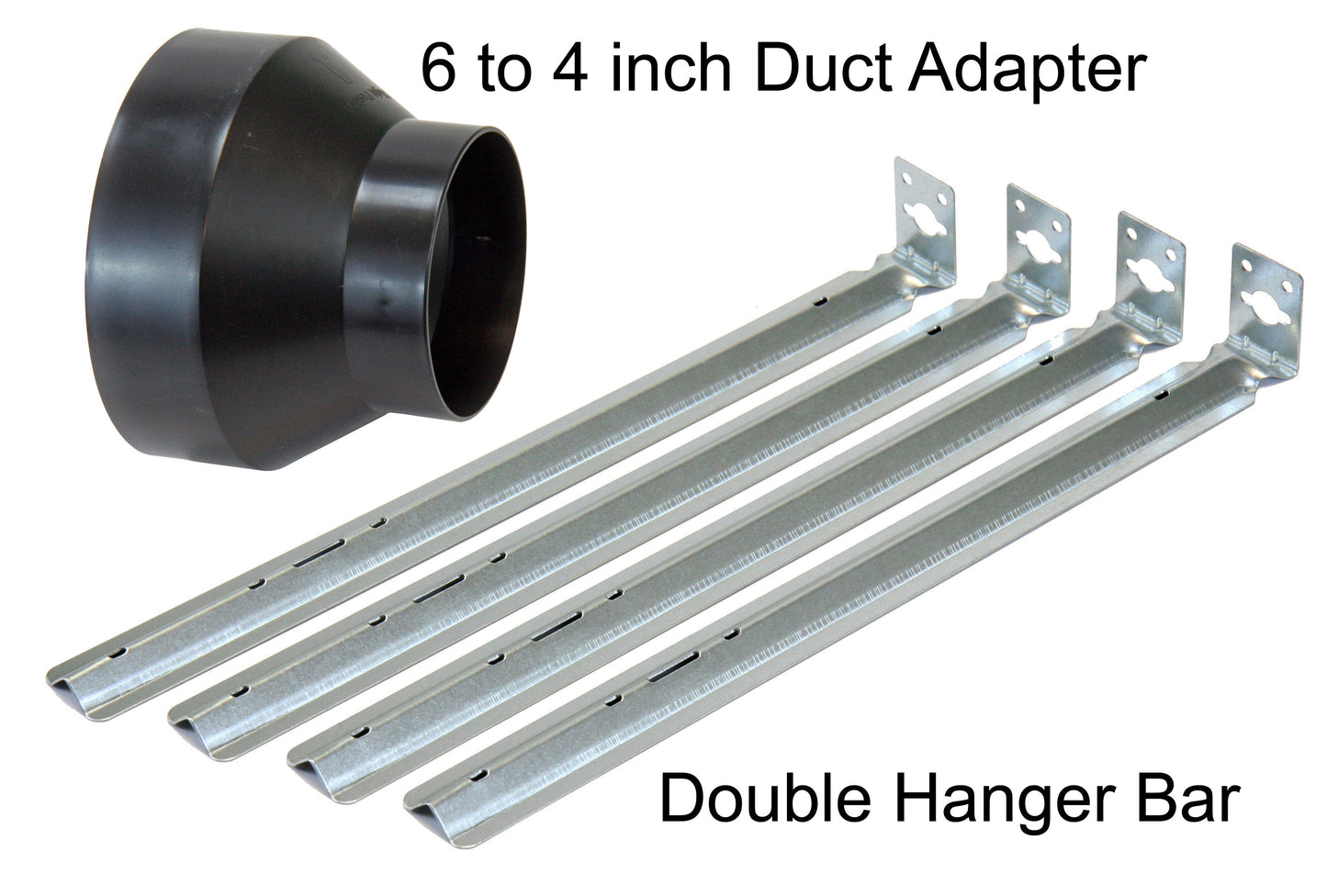

• DUCTING - Removable 6 inch metal duct adapter with back draft prevention damper.
• RELIABILITY - Proudly stand behind our products with 3 year warranty.

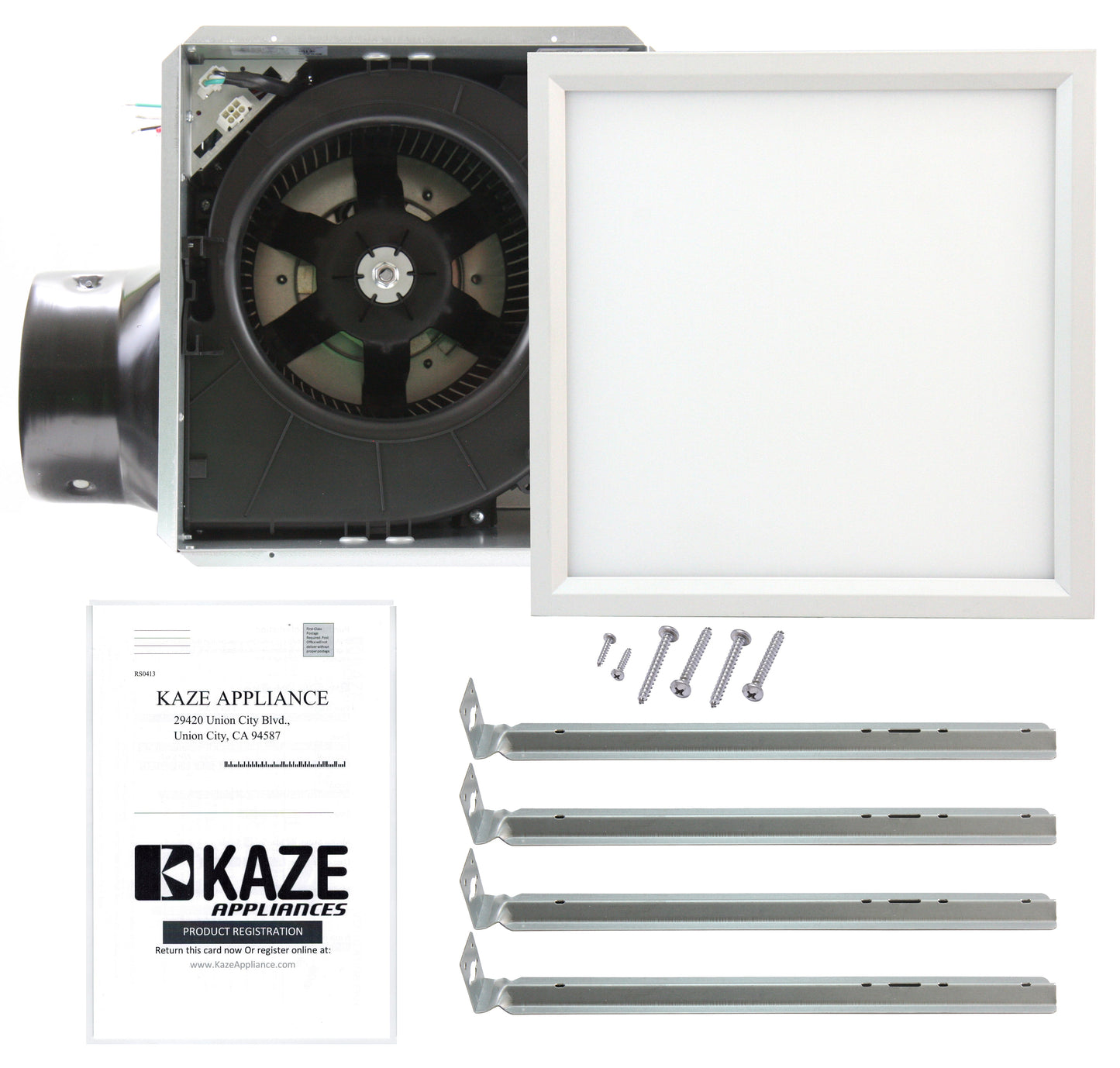

KAZE Appliance is proud to present SEP150L11, redesigned one piece blower assembly with removable 6 inch metal duct further improves stability and reliability. Built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The fan housing is made of rugged 26 GA galvanized steel and painted to prevent from rusting. Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.

Housing dimension: 11 3/8 by 10 1/2 by 7 5/8 inch.
Grill dimension: 13 by 14 inches polymeric resin
Voltage/ frequency: 120Volt/60Hz.

SEP120L11 Instruction Manual
