SEP120H | 120 CFM, 0.3 Sone | Humidity Sensing

Model: SEP120H

AirFlow: 120 CFM (Cubic Feet per Minute)
Loudness: 0.3 sones
Bathroom size: Up to 120 sqft

Features:

• Sound level of less than 0.3-Sones at 120-cfm
• Fan operates when humidity level is above an adjustable set-point (~50% to ~80% RH); when humidity level drops down, the fan continues to operate for an additional adjustable time (5 to 30 minutes) then automatically shut down
• Includes double hanger mounting bars. Built in 6-inch duct adapter

• Three year warranty


KAZE Appliance is proud to announce the new model SEP120H, redesigned one piece blower assembly with built in 6 inch duct adapter further improves stability and reliability. SEP120H not only ventilates the air in your room, but also equipped with Humidity Sensor to automatically switch on/off the fan unit to maintain desirable humidity level and hands free operation.

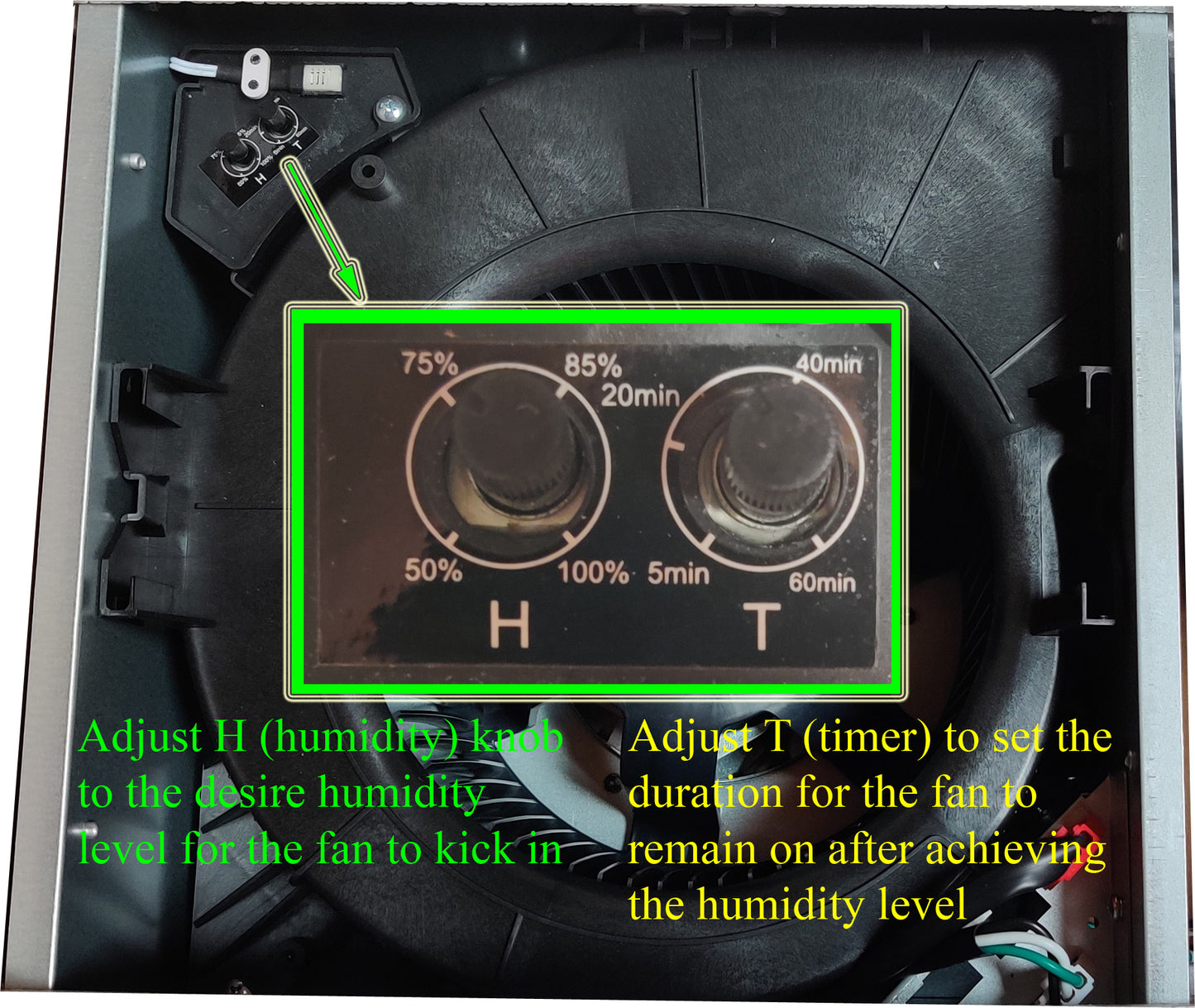

Humidity Sensing
Humidity sensing fan uses a sophisticated humidity sensor that responds to:
(1) moderate to rapid increase in humidity or (2) humidity above a user-adjustable set-point (50% to 100% relative humidity)
Delay Timer
The SEP120H is also equipped with an adjustable delay timer (5-30 minutes) that provides additional run time for the fan to complete the remaining necessary ventilation after the sensor has stopped sensing a rise in humidity and the humidity level is below the user setting.
The fan unit is built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The fan housing is made of rugged 26 GA galvanized steel and painted to prevent from rusting. Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions
Peace of mind quality, performance and reliability.

Housing dimension: 11 3/8 by 10 1/2 by 7 5/8 inch.
Grill dimension: 13 by 14 inches polymeric resin
Voltage/ frequency: 120Volt/60Hz.
