SEP120 | 120 CFM, 0.3 Sone

Model: SEP120

AirFlow: 120 CFM (Cubic Feet per Minute)
Loudness: 0.3 sones
Bathroom size: Up to 120 sqft

Features:

• HOUSING SIZE - Please note the size of the housing is 11 3/8 x 10 1/2 inch, resizing your existing ceiling opening will be needed if your current fan housing is smaller.
• SUPER QUIET - Powerful 120 CFM and quiet operation at 0.3 Sones. Suitable for bathroom size up to 120 square feet.

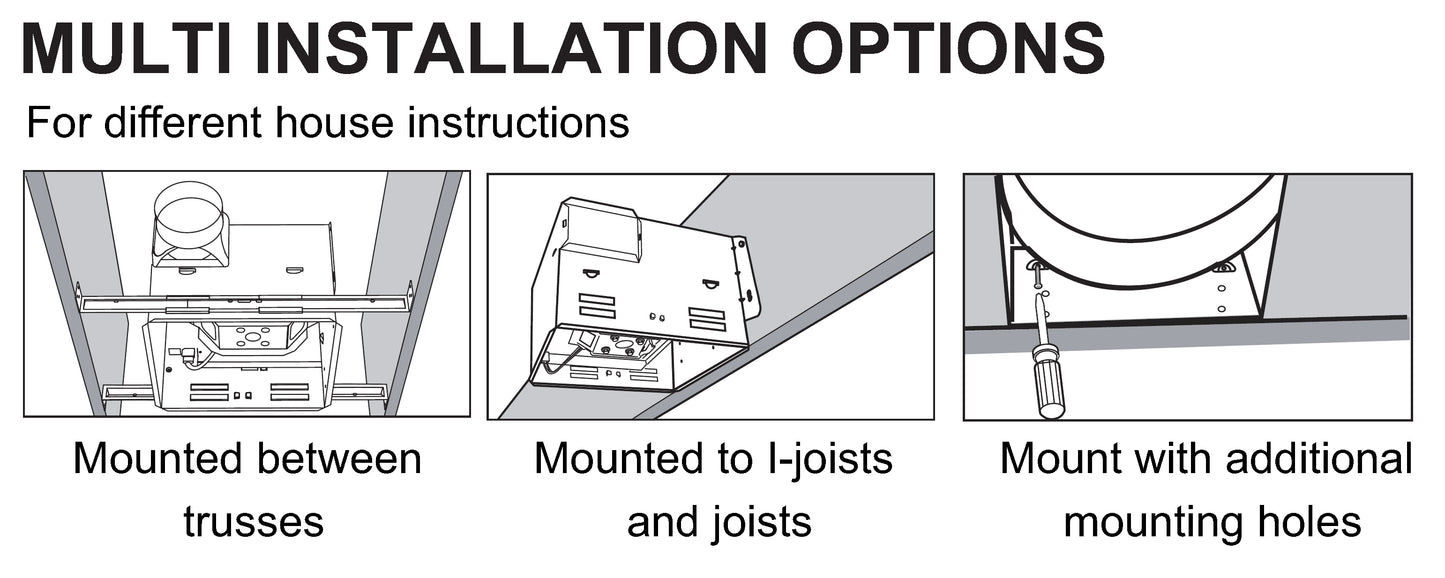

• INSTALLATION - Sliding hanger bars allow fan housing to be positioned accurately anywhere between the framing. The bars span up to 24 inch and can be used on all types of framing.

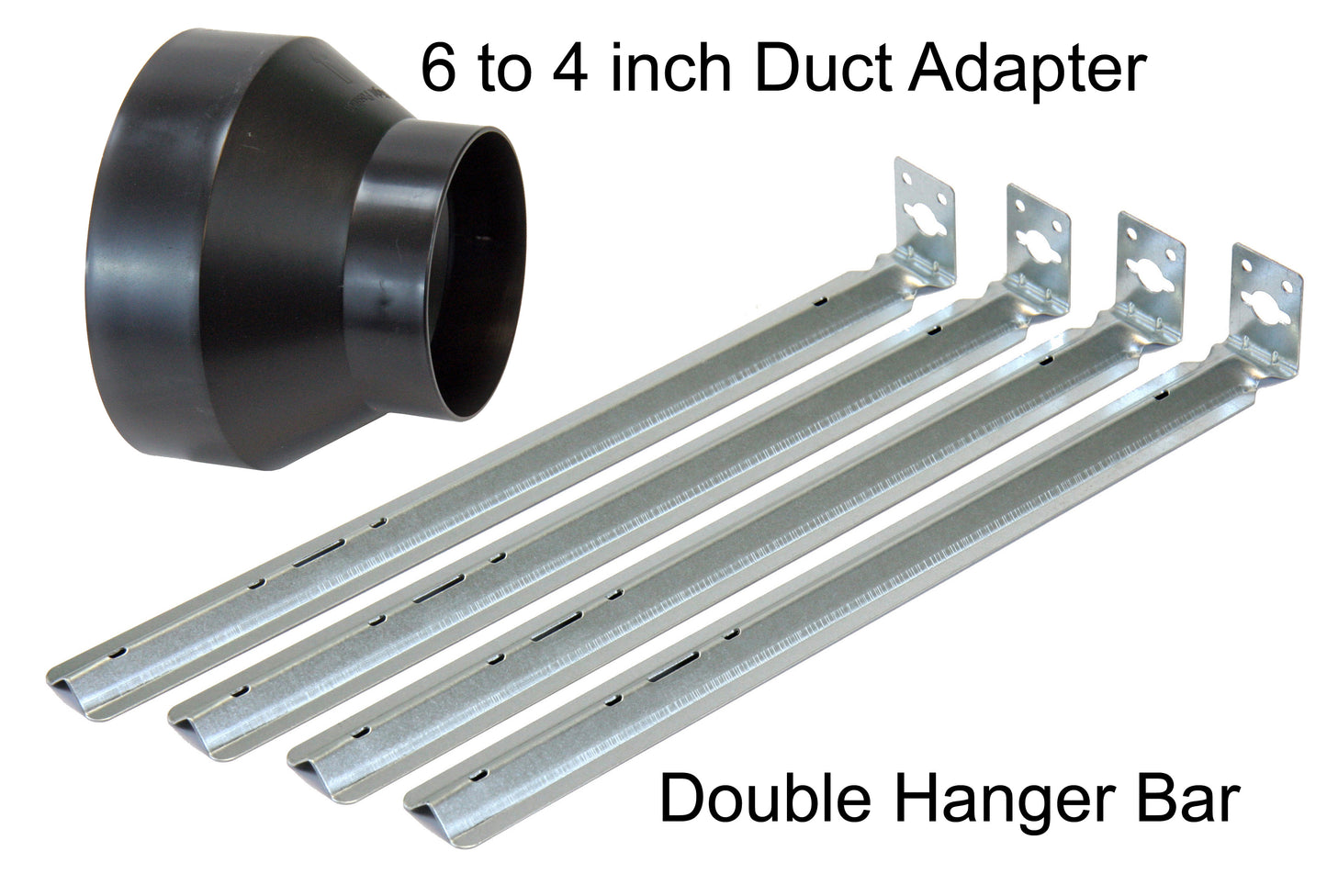

• DUCTING - Removable 6 inch duct with back draft prevention damper. Includes 4 inch duct reducer.
• RELIABILITY - Proudly stand behind our products with 3 year warranty.

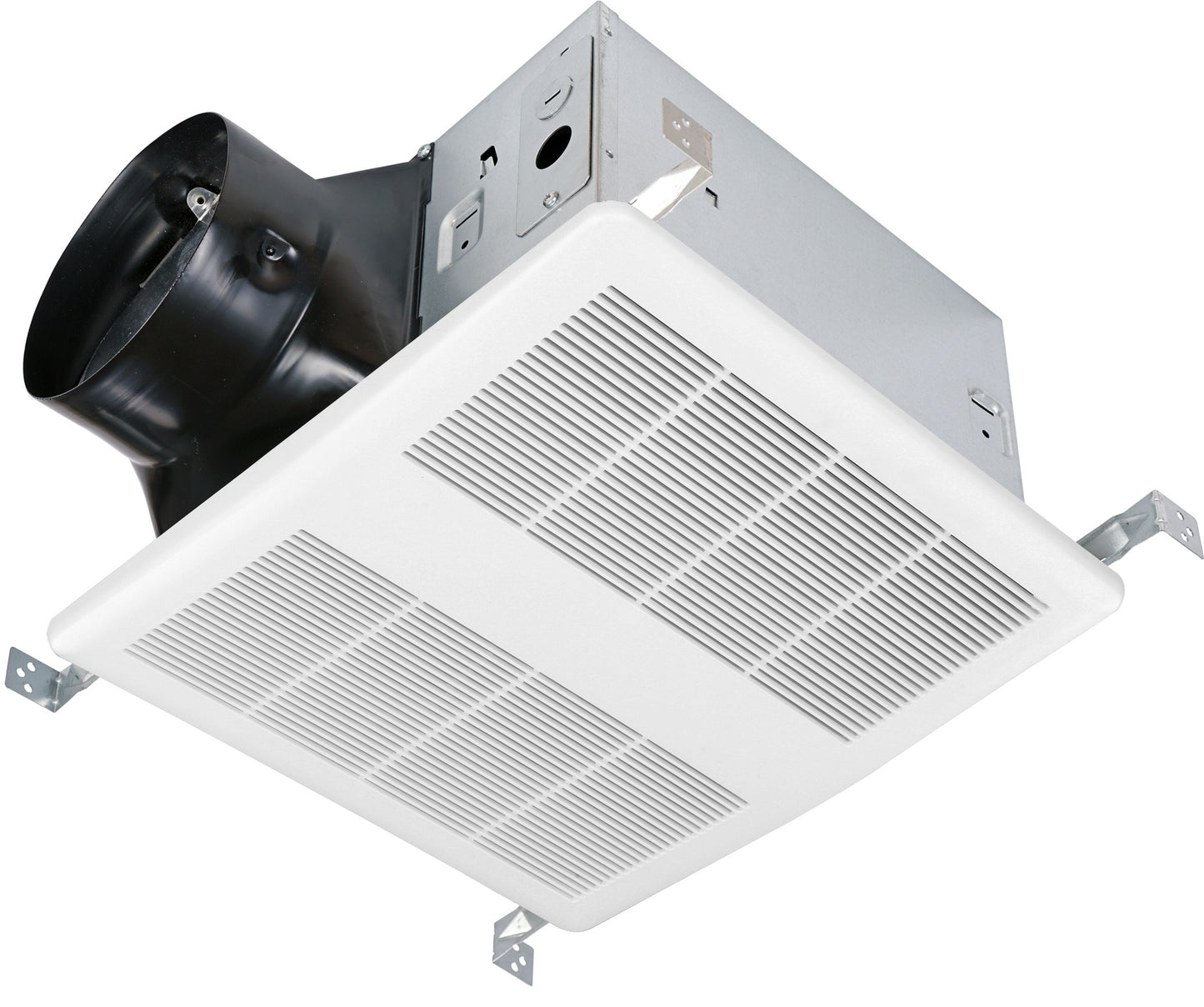

KAZE Appliance is proud to announce the new model SEP120, redesigned one piece blower assembly with built in 6 inch duct adapter further improves stability and reliability. Built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The fan housing is made of rugged 26 GA galvanized steel and painted to prevent from rusting. Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.
Peace of mind quality, performance and reliability.

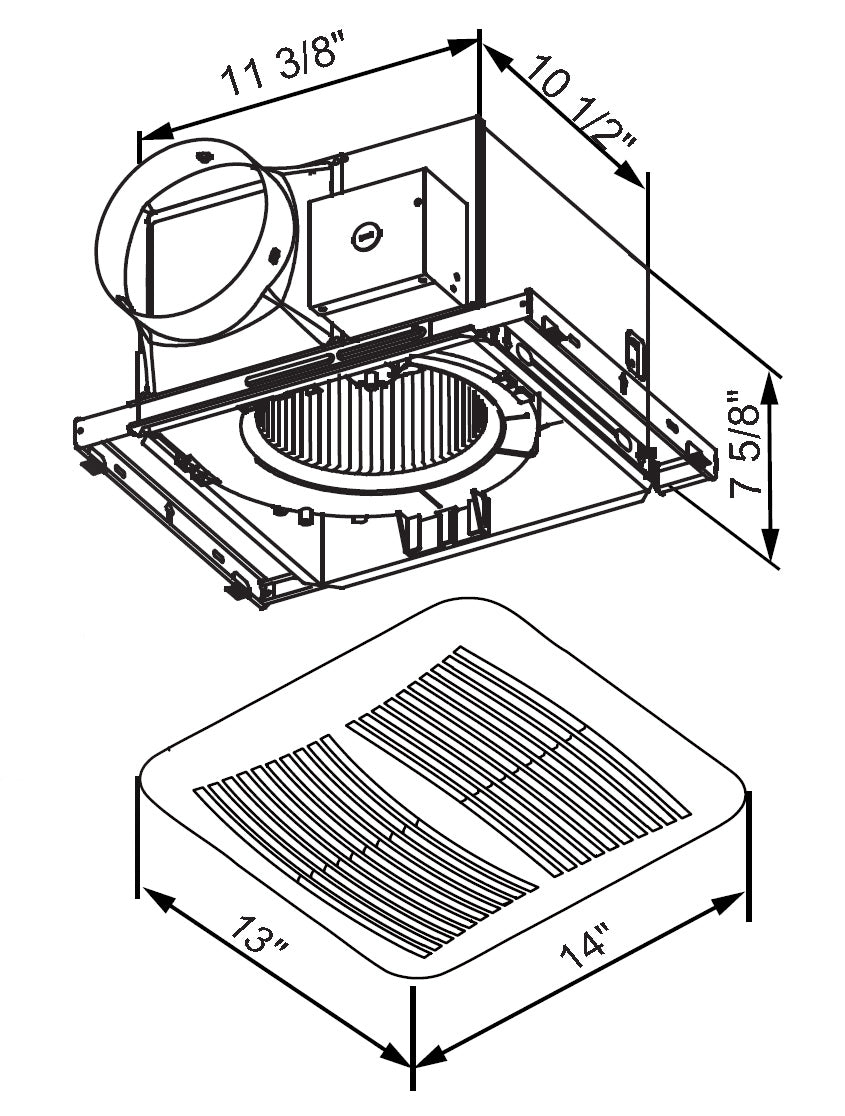

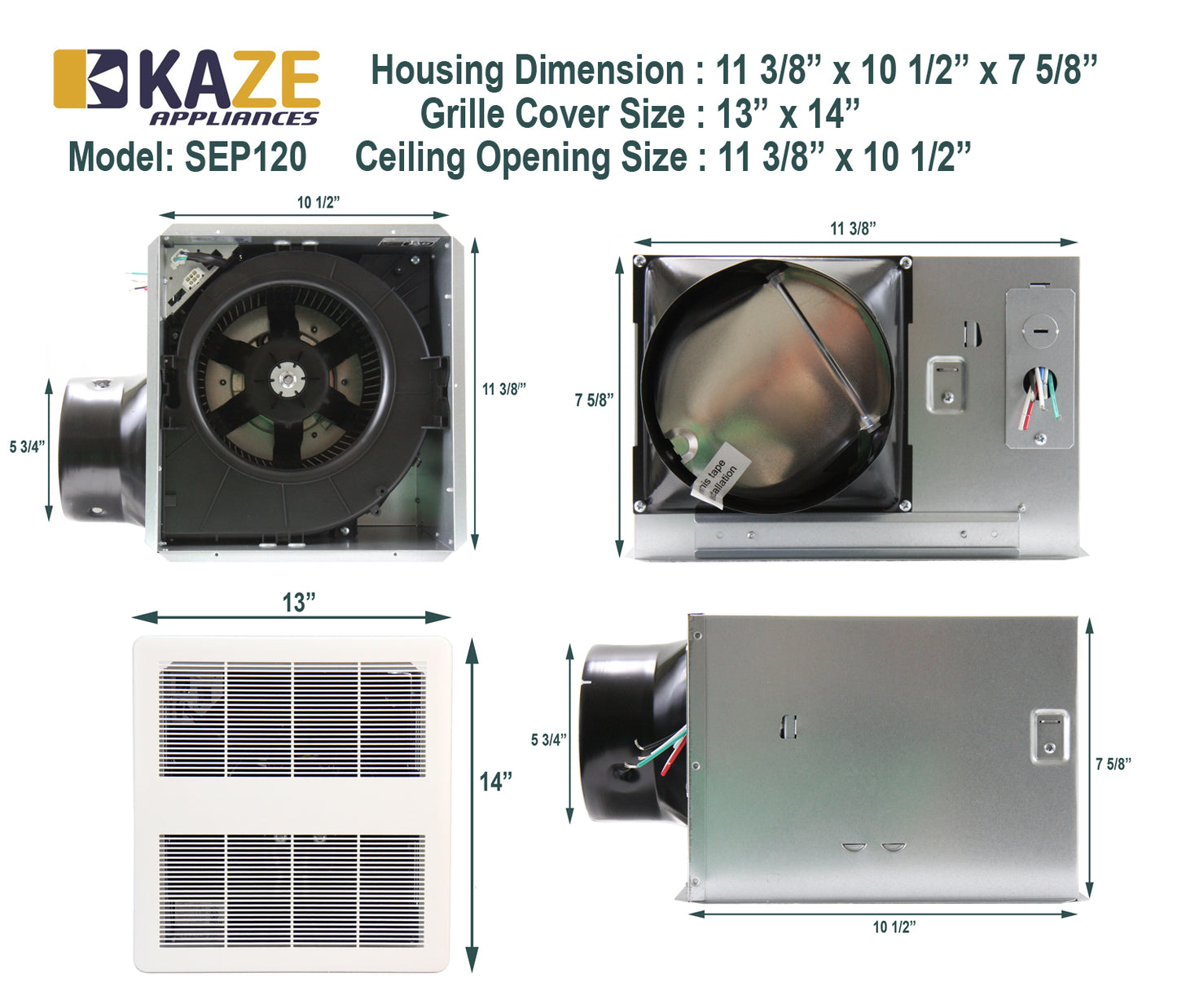

Housing dimension: 11 3/8 by 10 1/2 by 7 5/8 inch.

Grill dimension: 13 by 14 inches polymeric resin
Voltage/ frequency: 120Volt/60Hz.

SEP120 Instruction Manual
